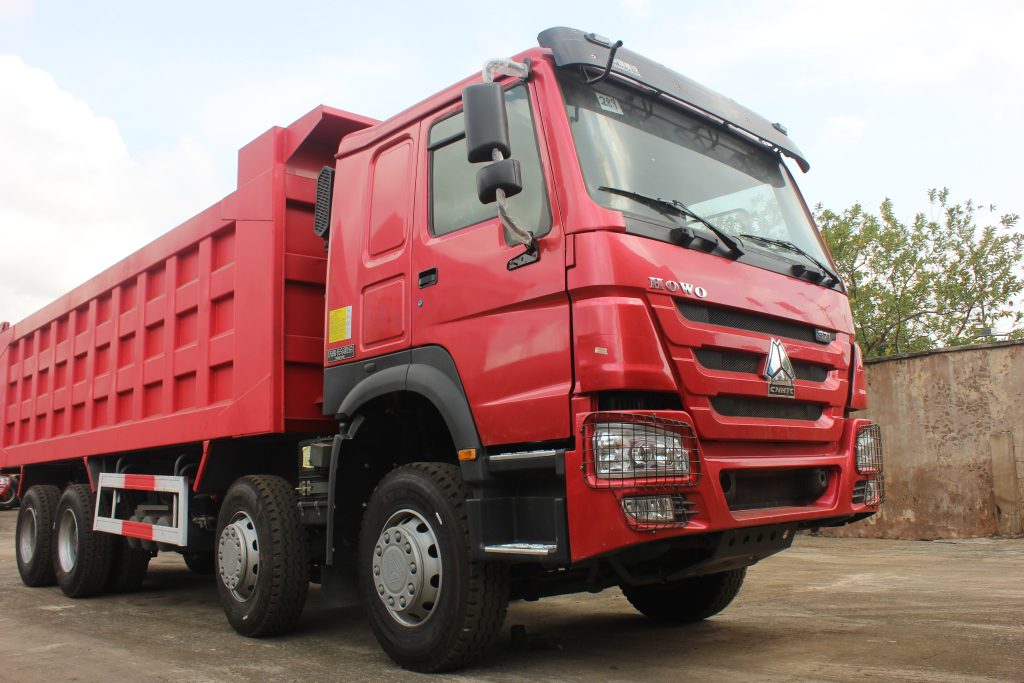

Howo 6×4 Dump Truck 16 CBM. Red

Howo 6x4 Dump Truck 16 CBM. Red

  • Model: ZZ3257N3447A1
  • Cabin: HW76, one sleeper with A/C
  • Engine: WD615.69, Euro 2, 336HP
  • Transmission: HW19710, 10F & 2R
  • Front Axle: HF9, 1x9000KG
  • Rear Axle: HC16, 2x16000KG
  • Cargo Body: 5200x2300x1350 mm


How to choose the right tipper:

1. Confirm what goods to carry to decide the thickness of the bucket.

2. Confirm how many CBM or Tons to carry to decide the bucket size and engine power.

Howo 6x4 Dump Truck 16 CBM. Red


Chassis Model


Driving Type

LHD (RHD is optional)


HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.



Diesel 4-stroke direct injection diesel engine

Engine model: WD615.69, Euro 2, 336 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L


HW19710, 10F & 2R, with PTO

Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)


ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9,1×9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2×16000 KGS

Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.


Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange


Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members

Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer


Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake


Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light


12.00R20, radial tyres with one spare tyre

Fuel Tank


Cargo Body

5200*2300*1350 mm, 16 CBM, Floor 8mm Side 6mm

Overall Dimension
