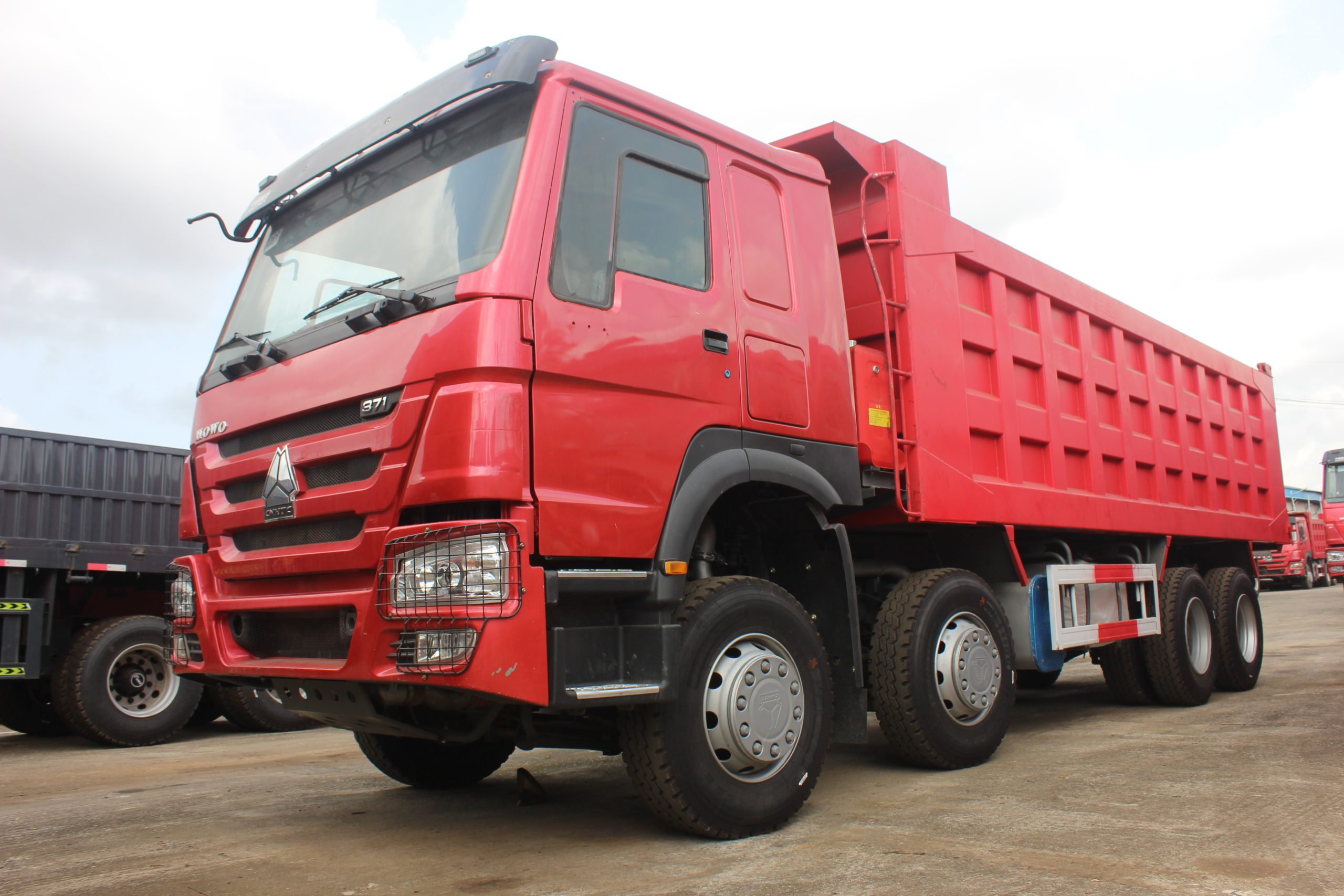

Howo 6×4 Dump Truck Red

Howo 6x4 Dump Truck Red

  • Model: ZZ3257N3447A1
  • Cabin: HW76, one sleeper with A/C
  • Engine: WD615.69, Euro 2, 336HP
  • Transmission: HW19710, 10F & 2R
  • Front Axle: HF9, 1x9000KG
  • Rear Axle: HC16, 2x16000KG
  • Cargo Body: 5200x2300x1350 mm



How to choose the right tipper:

1. Confirm what goods to carry to decide the thickness of the bucket.

2. Confirm how many CBM or Tons to carry to decide the bucket size and engine power.

Howo 6x4 Dump Truck Red

Specification

Chassis Model

ZZ3257N3447A1

Driving Type

LHD (RHD is optional)

Cabin

HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.69, Euro 2, 336 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission

HW19710, 10F & 2R, with PTO

Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9,1×9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2×16000 KGS

Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.

Ratio:5.73

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members

Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, radial tyres with one spare tyre

Fuel Tank

300L

Cargo Body

5200*2300*1350 mm, 16 CBM, Floor 8mm Side 6mm

Overall Dimension

8750*2550*3450mm
