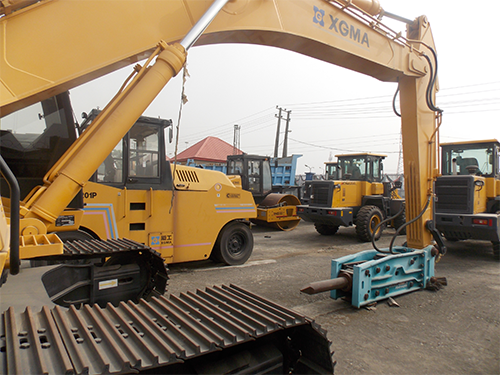

XGMA-XG836EL Crawler Excavator

Powerful Engine: 184 kW (247 hp) ISUZU engine for high performance.

Strong Excavation Force: Up to 240 kN, ideal for heavy digging.

Large Bucket Capacity: 1.6 m³ for efficient material handling.

Extended Reach: 10,700 mm max reach and 6,980 mm digging depth.

Fast & Efficient: 9.8 rpm swing speed, dual travel speeds (5.3/3.1 km/h).

[wa-order]

Specification	Details
Operating Weight	33,800 kg
Bucket Capacity	1.6 m³
Engine Model	ISUZU AA-6HK1XQP
Rated Power	184 kW (247 hp) at 2,000 rpm
Maximum Excavation Force	162/240 kN (detailed breakdown not specified)
Swing Speed	9.8 rpm
Traveling Speed	5.3/3.1 km/h (two-speed settings)
Overall Dimensions (L×W×H)	11,285 × 3,370 × 3,510 mm
Track Width	600 mm
Maximum Digging Depth	6,980 mm
Maximum Reach	10,700 mm
Tear-Out Force	231 kN
